Compatible with large and high-voltage products up to 4532 size

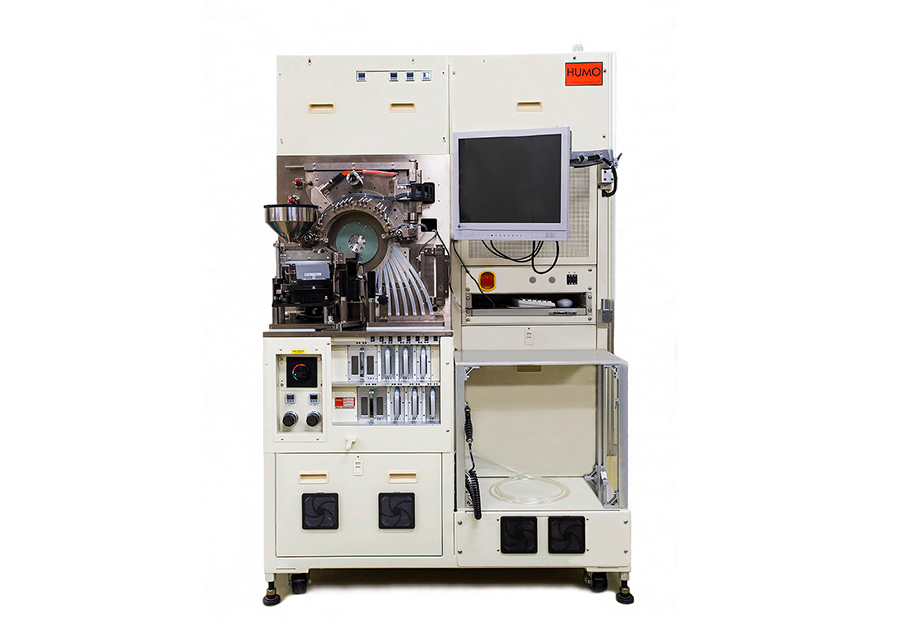

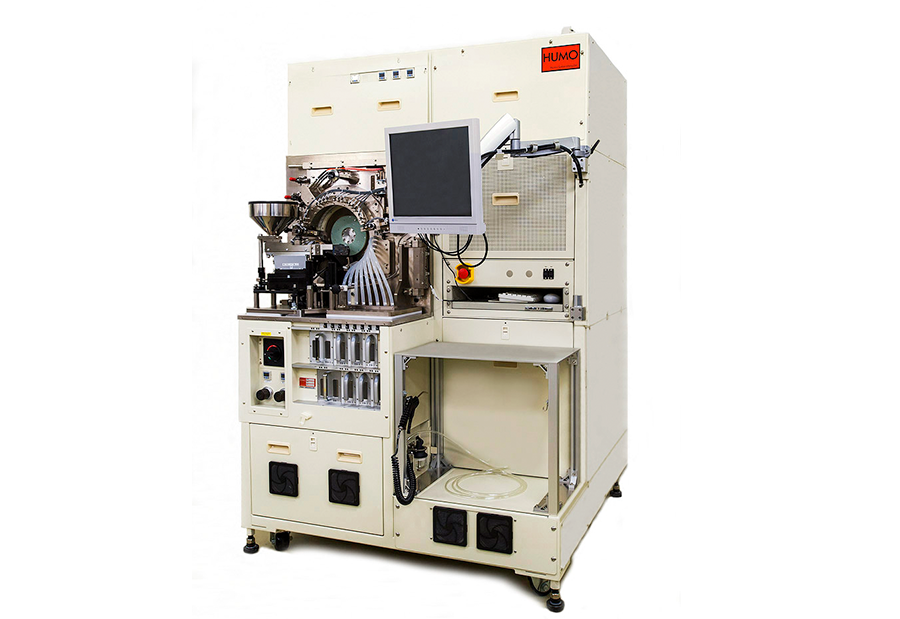

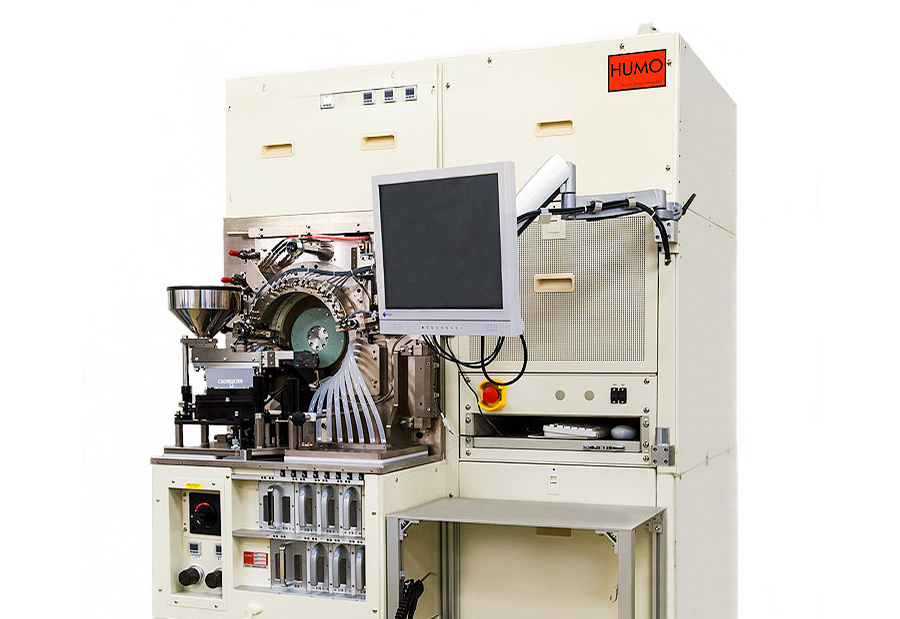

The ACM-7708 is a characteristic sorter that handles MLCCs fully automatically, from feeding to measurement and classification, and is specialized for multi-row measurement of large chips from 1005 to 4532 size. It is capable of applying at a maximum of 3kV. With its simple structure, this equipment can be customized for a variety of measurements upon request.
Basic specifications
| Supply part |
Hopper + supply bucket |
|---|---|
| Measurement items and measuring instruments *1 |
Capacitance and loss factor : E4981A × 1 (Keysight) Up to 2 measurements. |
| Number of classifications |
8 Classification + Forced Discharge |
| Chip size [mm (inch)] |
1005（0402）, 1608（0603）, 2012（0805）, 3216（1206）, 3225（1210）, 4520（1808）, 4532（1812） |
| Throughput |
MAX60,000pcs/H |
| Number of rows |
1 row |
| Power Supply |
AC-200V 10A 50/60Hz *3 |
| Air |
External air supply 0.5 Mpa or more (clean dry air) |
| Dimensions [mm] |
1200（L）×1165（W）×1940（H） |
| Weight |
Approx. 1,080 kg |
*1 The number of measuring instruments depends on the specifications.
*2 The maximum output voltage depends on the type of power supply installed. It must be specified at the time of order.
*3 Input power supply voltage can be changed for overseas use.
