Supports large capacity products from 0603 size to 3225 size, medium and high pressure products

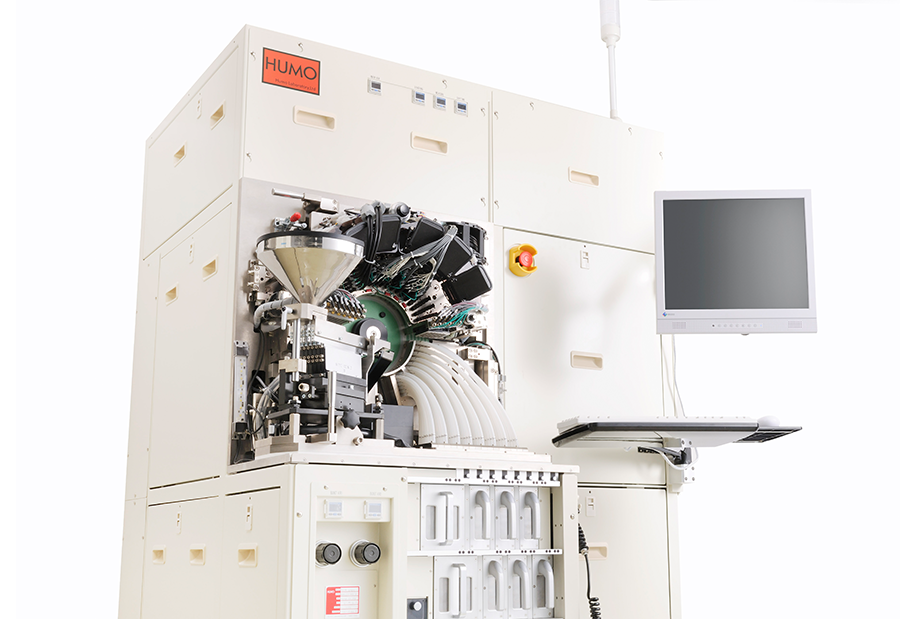

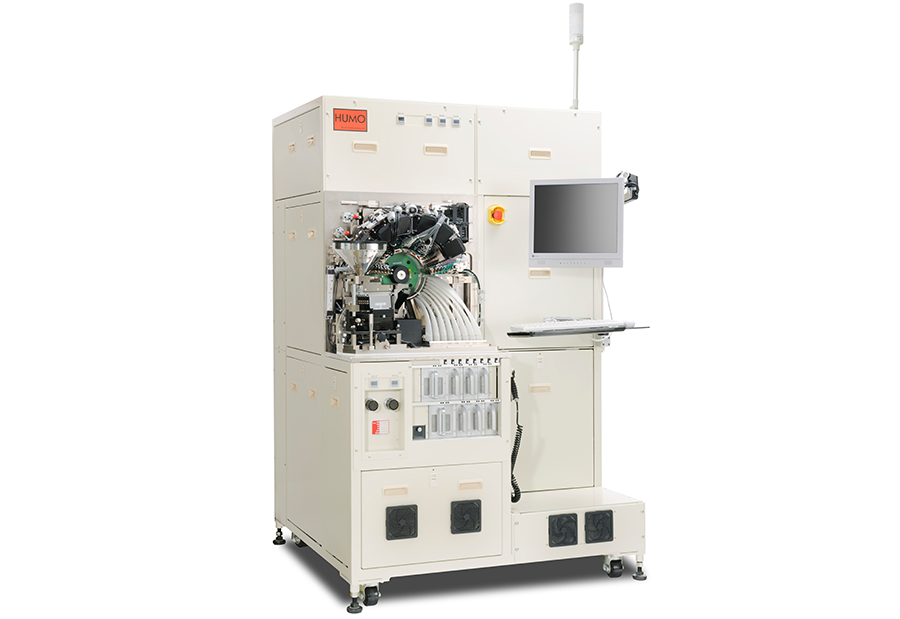

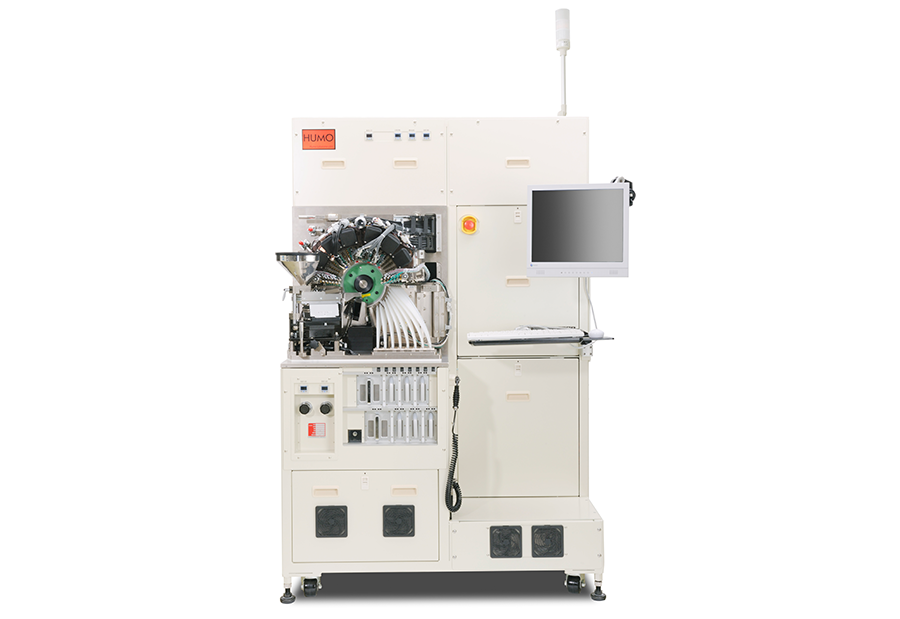

This device is a characteristic sorter which processes MLCC fully, from supply, measurement and classification.
MLCCs are lined up on the hopper unit, supplied to the carrier loading unit 6 lines, and inspected for each characteristic on the measuring station, and sorted automatically according to OK and NG. For 0603 to 3225 size, Hopper unit is new Feeder which designed without shutter structure. This parts feeder is independent of each line to feed chip to Bucket units. This machine has “move on function” same as ACM-4200.
basic specifications
| Model | ACM-3100 | ACM-3101 | ACM-3102 |
|---|---|---|---|
| 供給部 |
Hopper+Loading Bucket |
Hopper+Loading Bucket |
Hopper+Loading Bucket |
| Measurement Item
Measuring Instrument * |
Capacity / loss : E4981A × 2 |
Capacity / loss : E4981A × 2 |
Capacity / loss : E4981A × 2 |
| Binning |
8 categories (including RI / forced discharge) |
8 categories (including RI / forced discharge) |
8 categories (including RI / forced discharge) |
| Chip Dimension |
0603(0201),1005(0402),1608(0603),2012(0805),3216(1206),3225(1210) |
0603(0201),1005(0402),1608(0603),2012(0805),3216(1206),3225(1210) |
0603(0201),1005(0402),1608(0603),2012(0805),3216(1206),3225(1210) |
| Maximum throughput |
720,000 pcs / h |
480,000 pcs / h |
270,000 pcs / h |
| Applied voltage |
400 V * 0 P 600 W |
1 kV |
2 kV |
| Number of columns |
6 columns (* 3225 is 3 columns) |
6 columns (* 3225 is 3 columns) |
3 rows |
| Power Supply |
AC-200V 10A 50/60Hz |
AC-200V 10A 50/60Hz |
AC-200V 10A 50/60Hz |
| Air Supply |
Required outside plus air supply(More than 0.5Mpa) (Clean and dry air) |
Required outside plus air supply(More than 0.5Mpa) (Clean and dry air) |
Required outside plus air supply(More than 0.5Mpa) (Clean and dry air) |
| Dimension |
1,200(L) × 1,165(W) × 1,940(H) |
1,200(L) × 1,165(W) × 1,940(H) |
1,200(L) × 1,165(W) × 1,940(H) |
| Weight |
1,100kg |
1,100kg |
1,100kg |
* The number of measuring instruments varies according to specifications.
